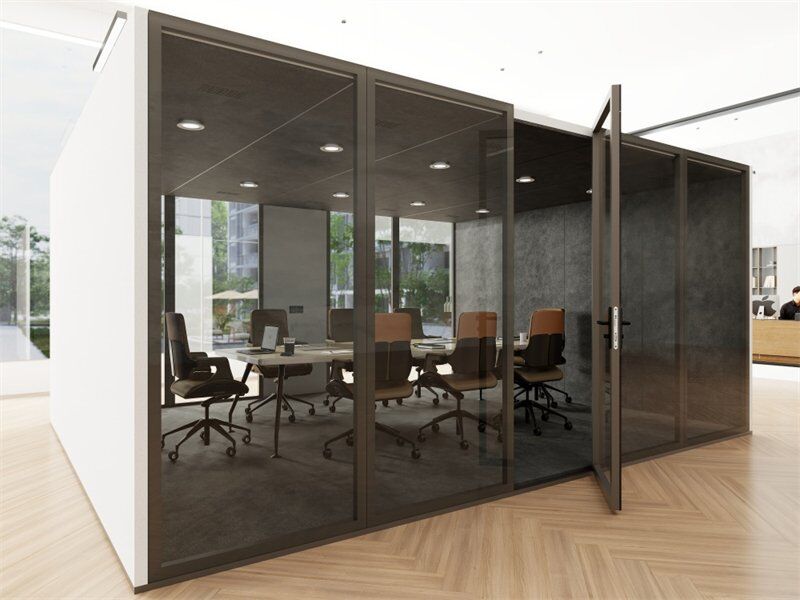

Optimizing Your Multi-Person Large Soundproof Conference Room

$3,630.00

Dimensions


External dimensions :5000*4000*2250 mm

Inner dimensions : 4880*3895*2100 mm

Floor area :19 m²

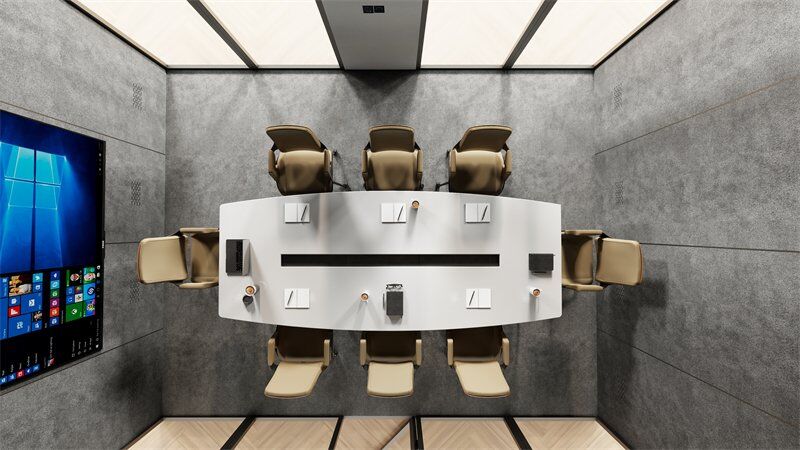

Table dimensions : 280*120 cm

Table height : 74 cm

Door dimensions : 90*225 cm-Reversible

Door free passage area : 88 cm

Fixed base : Integrated adjustment levellers for easy interior access

Materials


Structure: Extruded aluminum profile glass frame and 1.0 mm cold-pressed steel plate,Interior structural frames of the panels made of 50*30*1.5 mm galvanized steel tube. With 40 mm PET thick and a density of 2200 gr/m².

External cladding: 1.0 thickness cold-pressed waterproof and rust-proof steel plate, more durable than melamine particle board panel.

Interior cladding: PET ECO 9mm panel y upholstered. Bottom panels with ventilation grille of sheet steel e=1.5 mm.

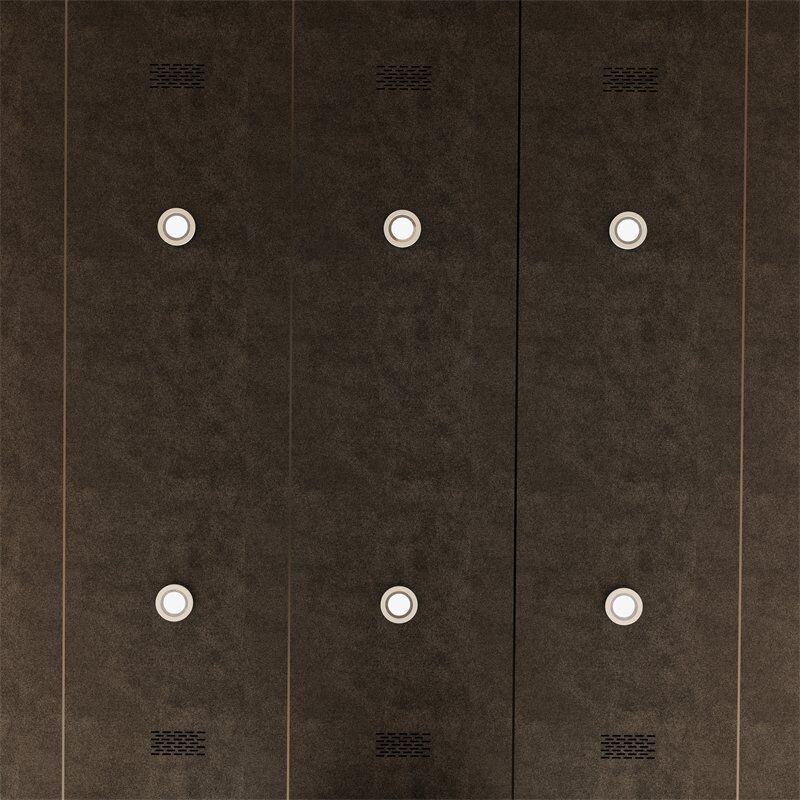

Roof coating: Aluminum frame with 5 cm thick sound absorbing cotton in the middle and 9 mm PET ECO covering above and below.

Floor covering: 18 mm thickness MDF and high quality soundproof carpet.

Tabletop: Melamine chipboard table top e=19 mmLeg made of laminated and pickled steel tubing 110*50 cm.

Technical Information


Lighting: 2 longitudinal linear LED 8.6 W-12 V – 520 mm,Daylight 4000 K Simultaneous activation together with fans viapresence sensor.

Ventilation: 2 impellers in front + 4 extractors in roof.Ultra-thin + ultra-quiet fresh air exhaust fan speed: 750/1200 RPM ventilation, fan volume: 89/120 CFM average ventilation 110M3/H.

Acoustics: Global Speech Reduction – ISO 23351-1:2020 TypeA (35 -40db)

Connectivity: 1 pcs 110v-220v 5-hole socket*1, USB socket*1, 1 position switch*Light and exhaust independent switch control.Connecting cable from cabinet: 2.5 m linear0.5 mL to GST18 connector + 2 mL from connectorto plug head.

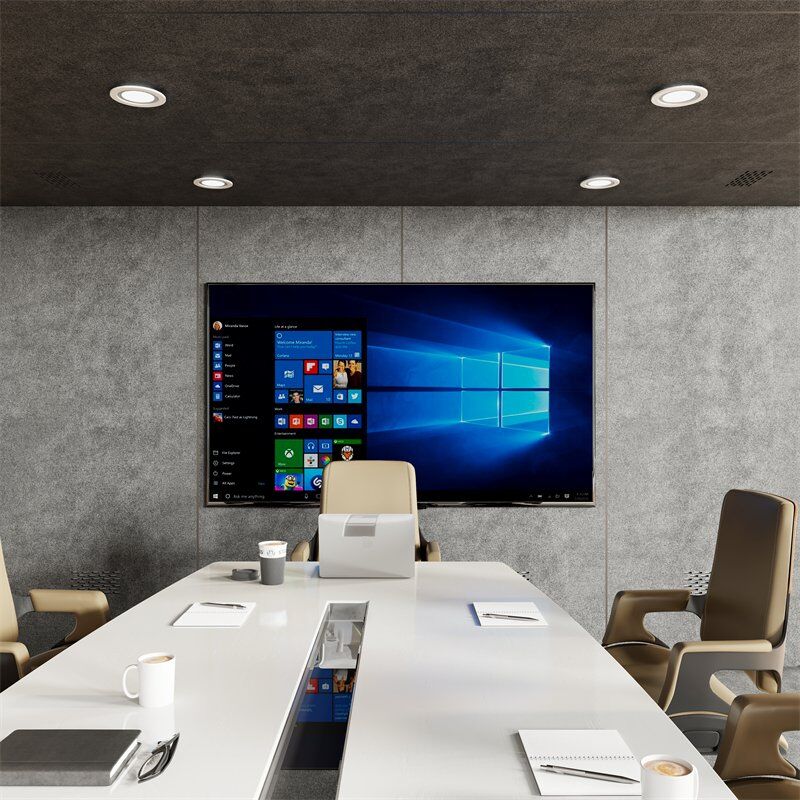

TV bracket: Optional bracket for mounting screens with universal VESA 100 and 200 + 1 CS 120v-220v Max. size: 43″// Max. weight: 15 Kg

Flame retardant: Elements certified B-s1-d0 against reaction to fire- Standard EN 13501-1 + A1:2013

分类: 标签:

描述

Introduction to Soundproof Conference Rooms

In a busy office environment, maintaining privacy and focus during meetings is essential. A soundproof conference room is a solution tailored to provide a quiet space for discussions, free from external noise and distractions.

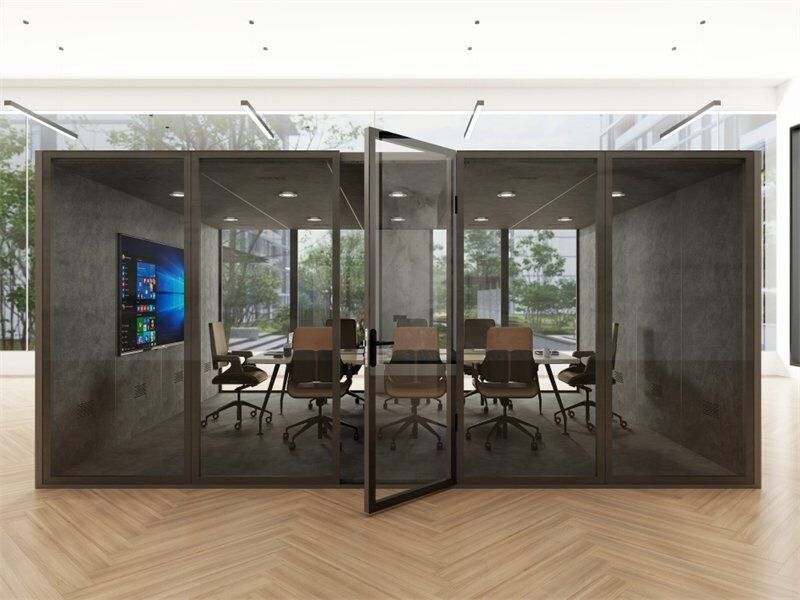

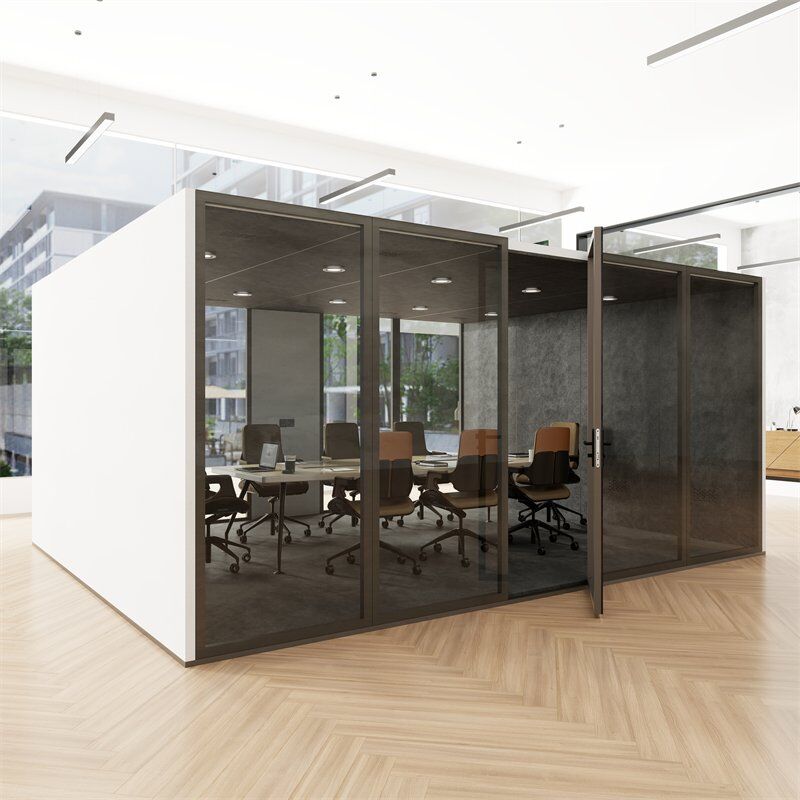

Features of a Multi-Person Soundproof Conference Room

A large soundproof conference room accommodates multiple people, making it ideal for team meetings, client consultations, and brainstorming sessions. It often includes state-of-the-art acoustical materials that absorb sound and minimize reverberation.

Benefits of Soundproofing

Having a multi-person soundproof conference room offers numerous benefits. Enhanced confidentiality ensures sensitive information stays secure. Improved acoustics lead to clearer communication, fostering productivity. Moreover, this creates a professional environment, impressing clients and stakeholders alike.

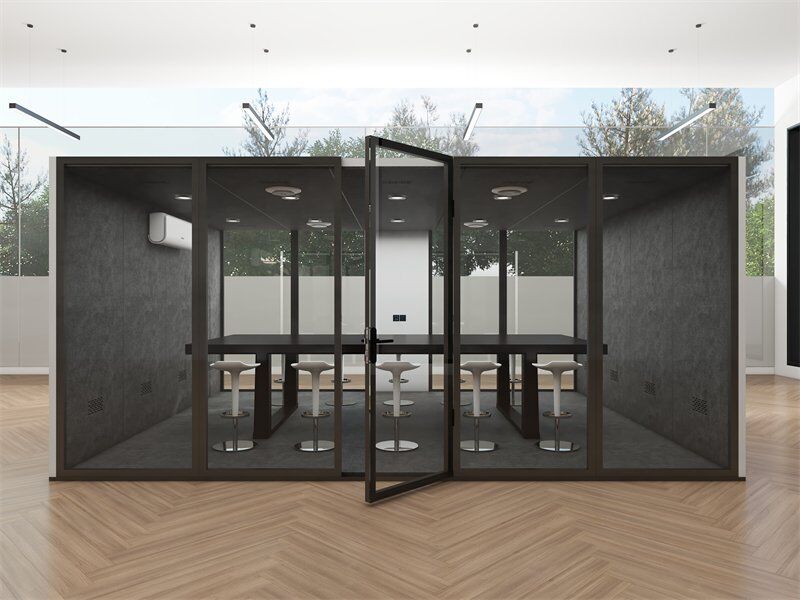

The smart and soundproof meeting pod

Product features:

1. 10mm high-strength film tempered glass, door opens outwards , B. Interlayer: sound-absorbing material, sound-insulating material, sound-insulating environmental protection board 9 mm
2. Ultra-thin + ultra-quiet fresh air exhaust fan Speed: 750/1200 RPM
Ventilation Fan Volume: 89/120 CFM Average ventilation 110M3/H
3. Contains anti-static and anti-fouling low loop pile carpet
4. Integrated 4000K natural light
5. Furniture:High quality carpet

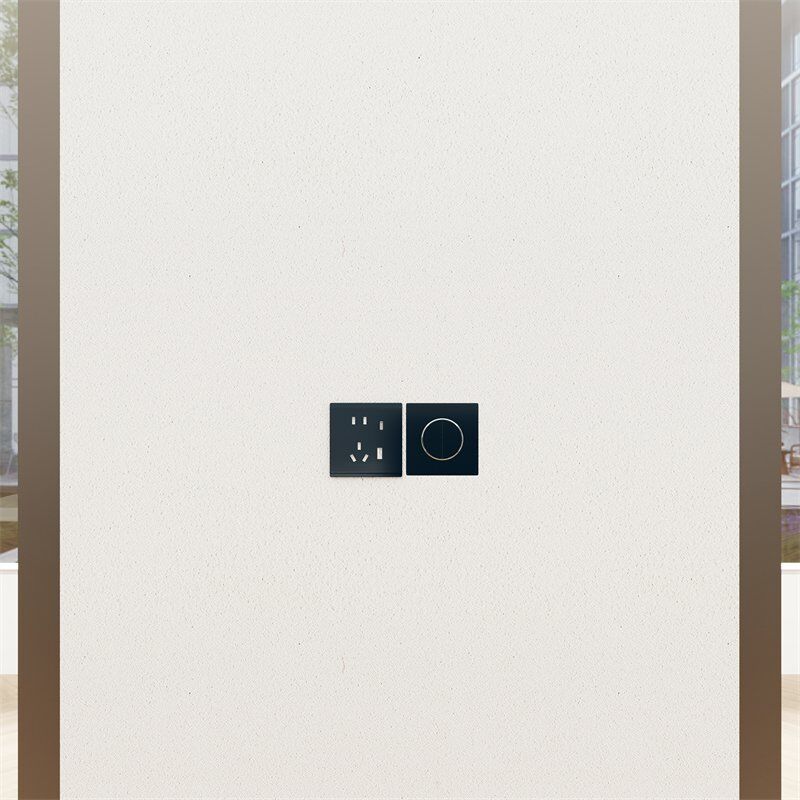

6. Power supply system: 5-hole socket*1, USB socket*1, 8-position switch*Light and exhaust independent switch control.
7. Configure adjustable feet, moveable wheels and fixed foot cups.

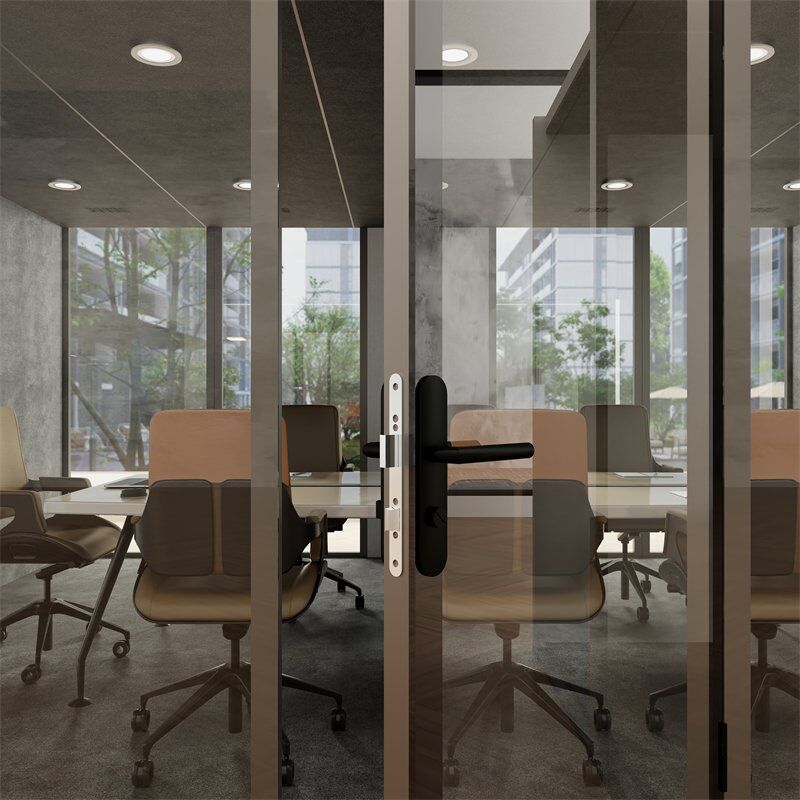

8.High quality door locks according to customer requirements

其他信息

size

L5000 * W4000 * H2250 mm

color

White exterior, gray interior

weight

Net weight: 1080kg
Gross weight:1220kg
