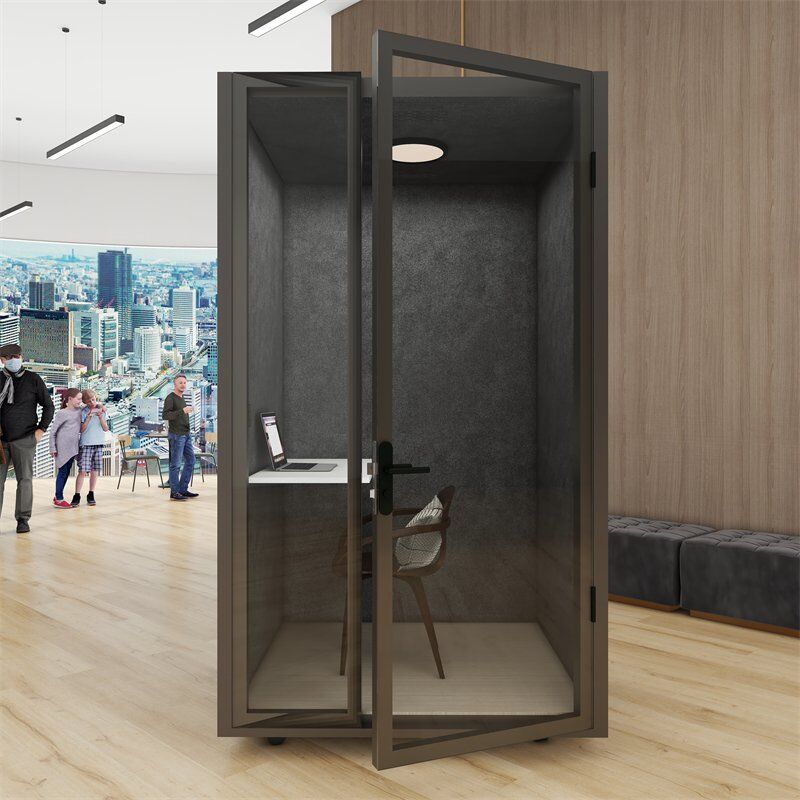

The Ultimate Solution for Quiet Workspaces: Soundproof Office Pod Booth

$1,160.00

Dimensions


External dimensions :1250*12500*2300 mm

Inner dimensions : 1130*1145*2150 mm

Floor area : 1.29 m²

Table dimensions : 50*30 cm

Table height : 74 cm

Door dimensions : 90*230 cm-Reversible

Door free passage area : 88 cm

Fixed base : Integrated adjustment levellers for easy interior access

Materials


Structure: Extruded aluminum profile glass frame and 1.0 mm cold-pressed steel plate,Interior structural frames of the panels made of 50*30*1.5 mm galvanized steel tube. With 40 mm PET thick and a density of 2200 gr/m².

External cladding: 1.0 thickness cold-pressed waterproof and rust-proof steel plate, more durable than melamine particle board panel.

Interior cladding: PET ECO 9mm panel y upholstered. Bottom panels with ventilation grille of sheet steel e=1.5 mm.

Roof coating: Aluminum frame with 5 cm thick sound absorbing cotton in the middle and 9 mm PET ECO covering above and below.

Floor covering: 18 mm thickness MDF and high quality soundproof carpet.

Tabletop: Melamine chipboard table top e=19 mmLeg made of laminated and pickled steel tubing 110*50 cm.

Technical Information

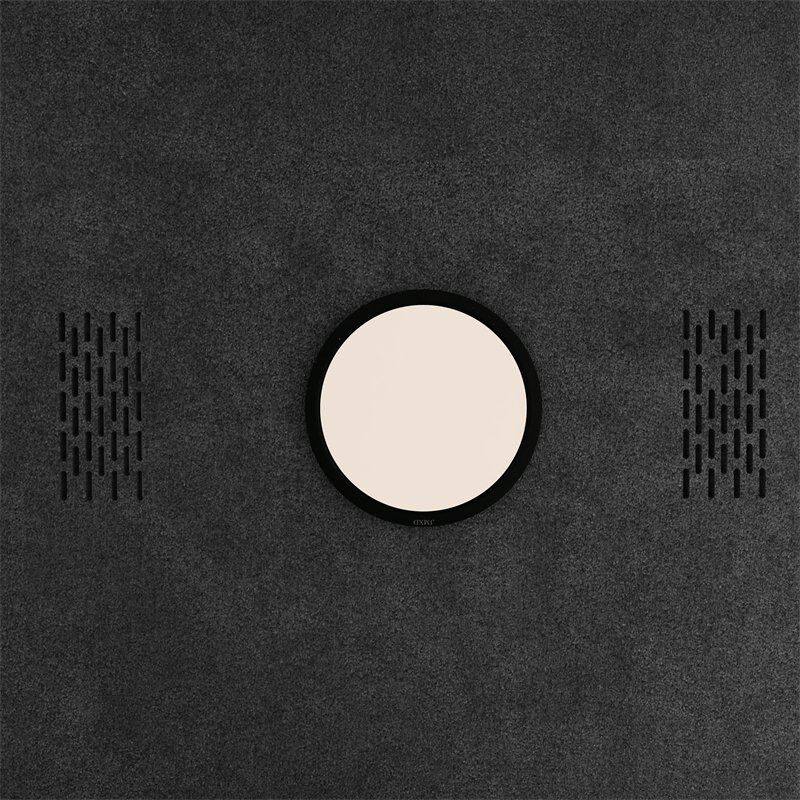

Lighting: 2 longitudinal linear LED 8.6 W-12 V – 520 mm,Daylight 4000 K Simultaneous activation together with fans viapresence sensor.

Ventilation: 2 impellers in front + 4 extractors in roof.Ultra-thin + ultra-quiet fresh air exhaust fan speed: 750/1200 RPM ventilation, fan volume: 89/120 CFM average ventilation 110M3/H.

Acoustics: Global Speech Reduction – ISO 23351-1:2020 TypeA (35 -40db)

Connectivity: 1 pcs 110v-220v 5-hole socket*1, USB socket*1, 1 position switch*Light and exhaust independent switch control.Connecting cable from cabinet: 2.5 m linear0.5 mL to GST18 connector + 2 mL from connectorto plug head.

TV bracket: Optional bracket for mounting screens with universal VESA 100 and 200 + 1 CS 120v-220v Max. size: 43″// Max. weight: 15 Kg

Flame retardant: Elements certified B-s1-d0 against reaction to fire- Standard EN 13501-1 + A1:2013

分类: 标签:

描述

Introduction to Soundproof Office Pods

In today’s dynamic work environments, finding a quiet and private space can be challenging. A soundproof office pod booth offers an ideal solution, creating an isolated workspace that can be used for focused work, meetings, and phone calls.

Features of a Soundproof Office Pod Booth

Soundproof office pods are designed with advanced materials to ensure maximum noise reduction. They often include high-quality insulation, acoustic panels, and sound-absorbing walls. Many models are also equipped with ventilation systems, integrated lighting, and power outlets for convenience.

Benefits for Modern Workplaces

Soundproof office pods are beneficial for open-plan offices, co-working spaces, and home offices. They help enhance productivity by minimizing distractions and offering a private area for confidential discussions. Additionally, these pods are flexible and can be easily relocated as the needs of the workspace evolve.

The smart and soundproof meeting pod

Product features:

1. 10mm high-strength film tempered glass, door opens outwards , B. Interlayer: sound-absorbing material, sound-insulating material, sound-insulating environmental protection board 9 mm
2. Ultra-thin + ultra-quiet fresh air exhaust fan Speed: 750/1200 RPM
Ventilation Fan Volume: 89/120 CFM Average ventilation 110M3/H
3. Contains anti-static and anti-fouling low loop pile carpet
4. Integrated 4000K natural light

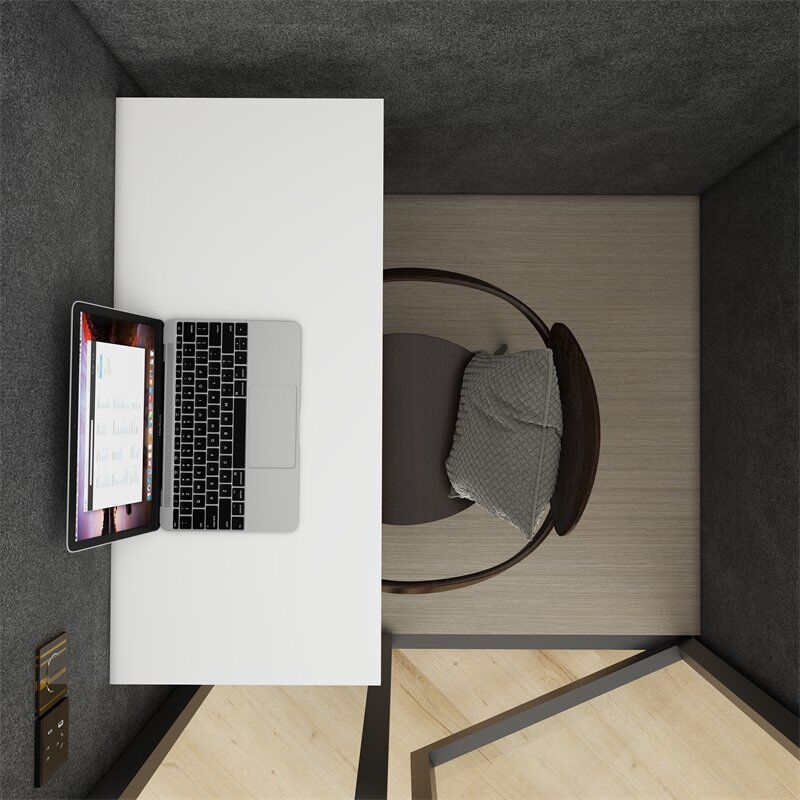

5. Furniture:Fixed high quality table,

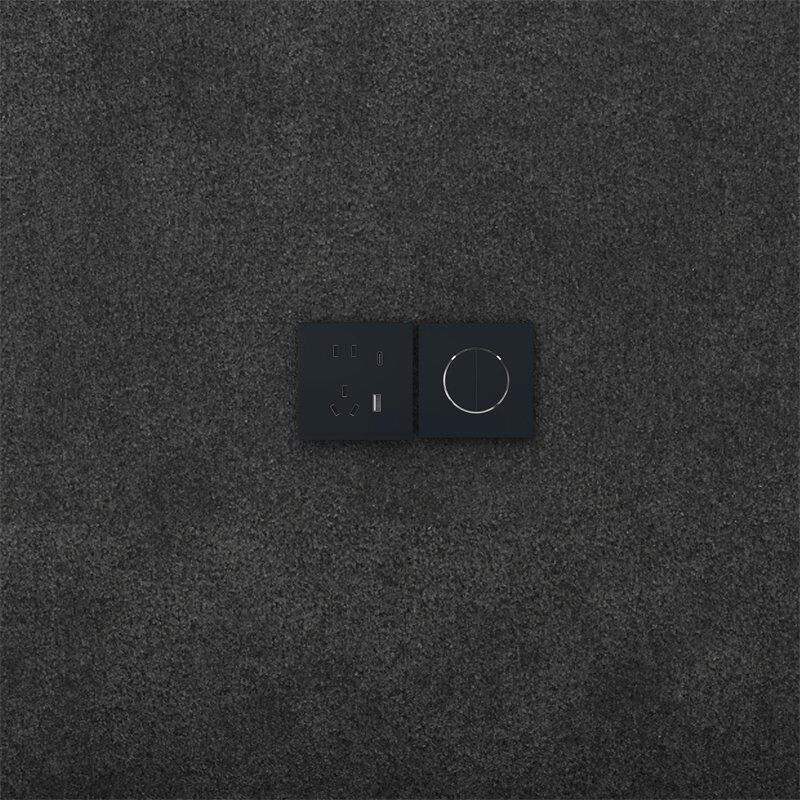

6. Power supply system: 5-hole socket*1, USB socket*1, 1-position switch*Light and exhaust independent switch control.

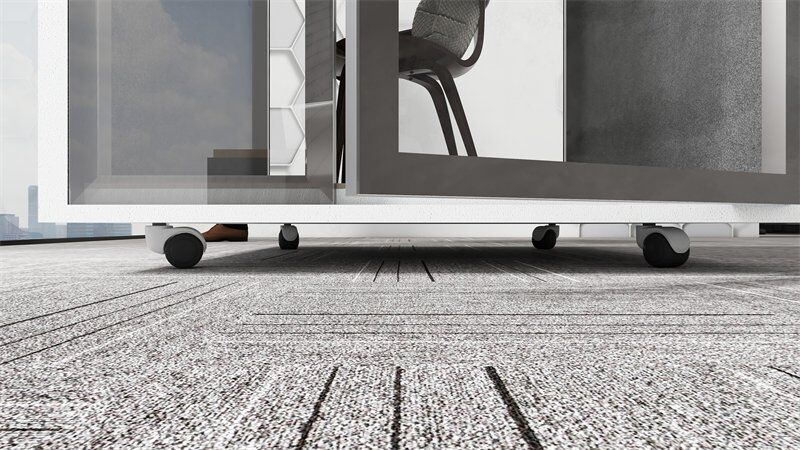

7. Configure adjustable feet, moveable wheels and fixed foot cups.

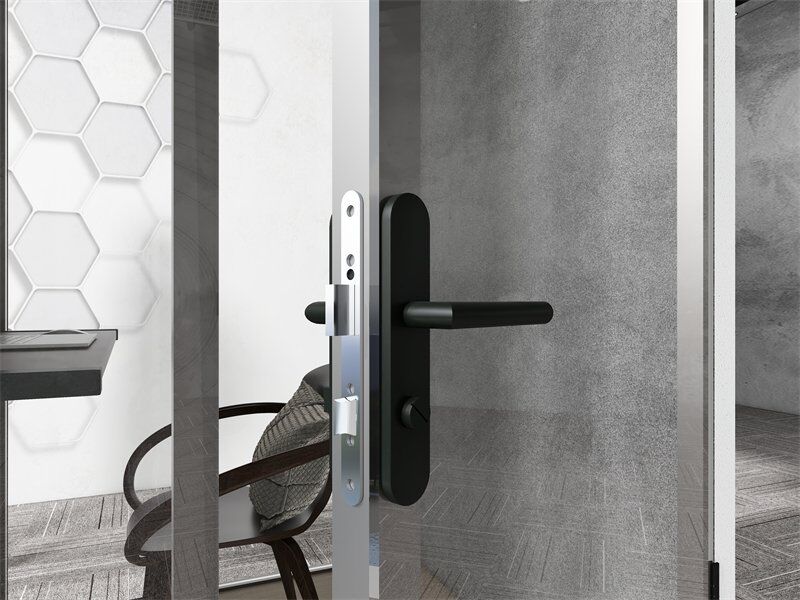

8.High quality door locks according to customer requirements

其他信息

size

L1L1250 * W1250 * H2300 mm

color

White exterior, gray interior

weight

Net weight: 320kg
Gross weight:350kg
